Email me if you would like an Access Database.

We have also created an Accumulating Snapshot and a Data Mart to help with Enquiries and Reports.

This page of my new Tutorial will help you understand the Data Model if you are new to Databases.

8) POC Student Registration Tables

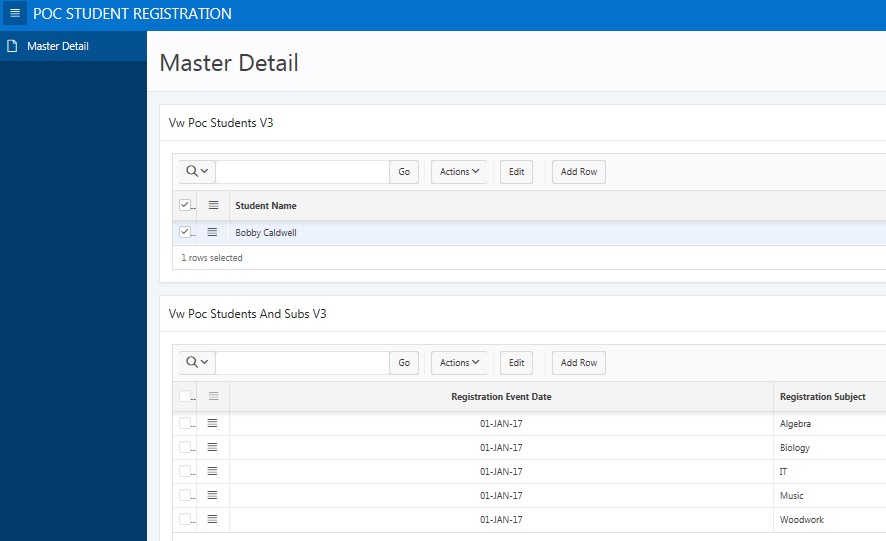

9) Screenshot of POC
Here we see that a Student called Bobby Caldwell is registered for 4 Subjects.

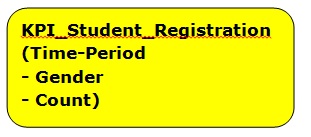

KPI Student Registration Count

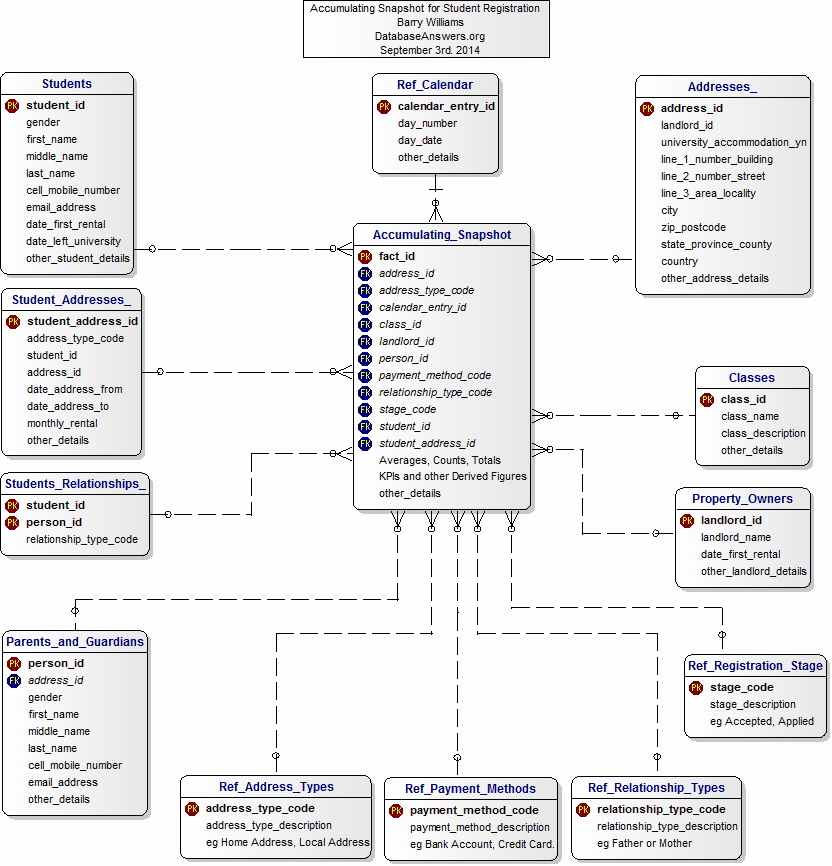

Accumulating Snapshot

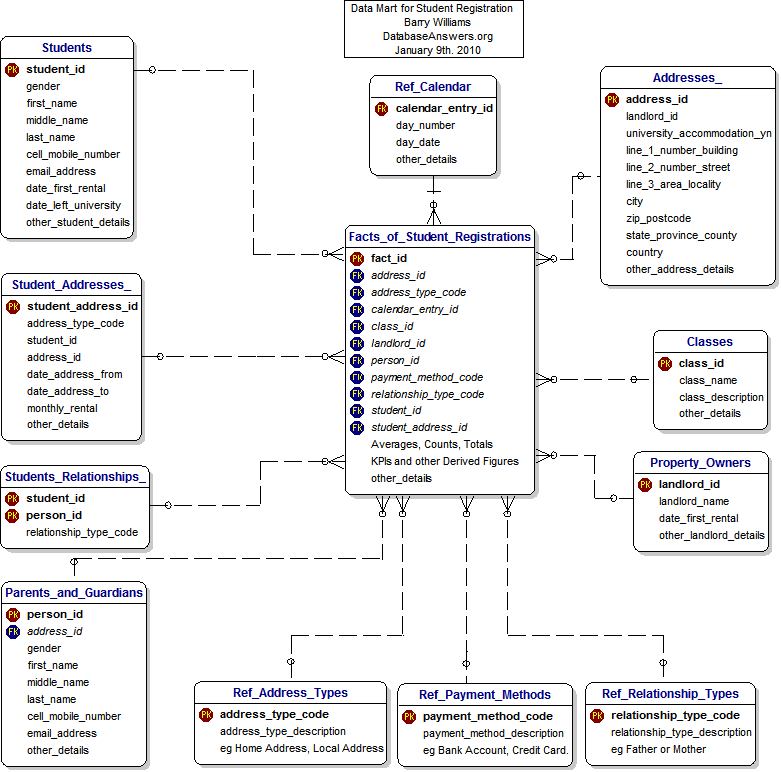

A Data Mart for Student Registration

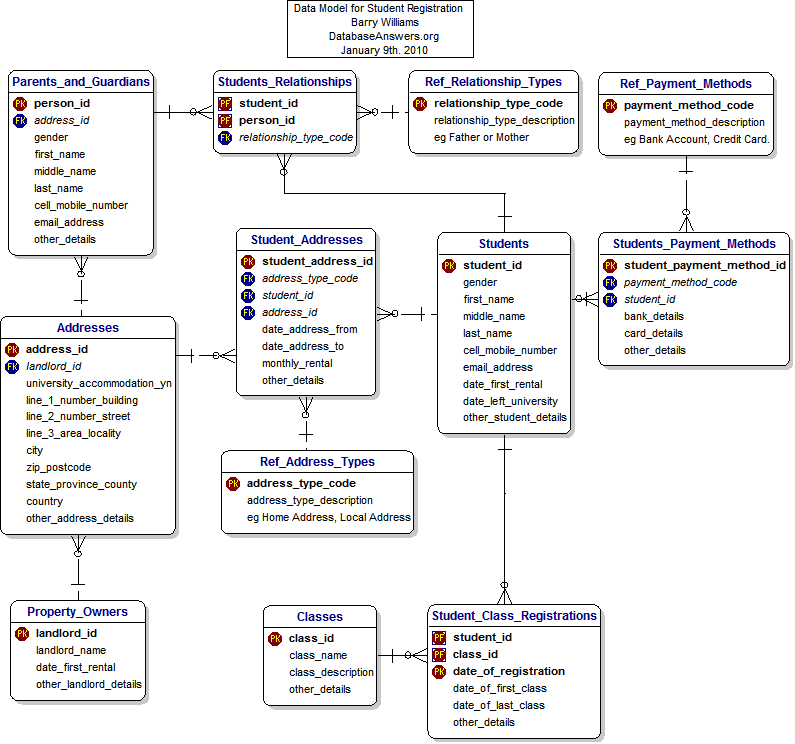

A Simple Conceptual Data Model for Student Registration	A Logical Data Model for Student Registration
Conceptual version of Our Canonical Data Model	Our Participants ERwin Canonical Data Model This is a little different from the Conceptual version
