Defense Logistics

An Access Database is available on demand.
The Requirements have been derived from a brief review of a Website.

An interesting suppier in this area of Defense Logistics is Miro, who use SOA and Web Services to offer a flexible approach to Data and Systems Integration.

If you are new to Data Models, this page of my new Tutorial will help you understand the Data Model.

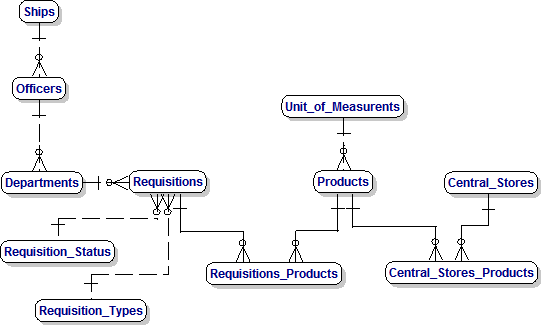

The Top-Level Data Model for Defense Logistics

The Top-Level Data Model for Defense Logistics

On the left is the Top-Level Data Model.
Separate Models have been created for these Subject Areas :-
1. Defense Logistics(no Relationships)
2. Defense Logistics(with Relationships)
3. Reference Data
4. Requisitions

A Transaction Model has been created, to provide a more general version of the Payment Model. It allows for Refunds, Adjustments and so on.

MDM Customers and Transactions
