Data Model for Electronic Medical Records
An Access Database
is available on demand.
If you have any comments or suggestions
we would be glad to hear them
.
If you are new to Data Models, this page of my new Tutorial will help you
understand the Data Model
.
The specifications
have been derived from a review of the
Wikipedia Entry for Electronic Medical Records
.
On January 7th, 2017, I updated my Data Model in line with a coule of excedllent suggestions from Andrew Davies.
Andrew also made me aware of the existence of the
open EHR
and here's the
Wikepedia Entry
.
After I updated my Data Model second version is in line with my
Event-oriented canonical Data Model
.
There is also a
Dimensional Model
, which is very useful for providing data for Analysis, Enquiries, Reports and Business Intelligence.
Here is the
Physical Data Model
for the SQL Script to generate the MySQL Database.

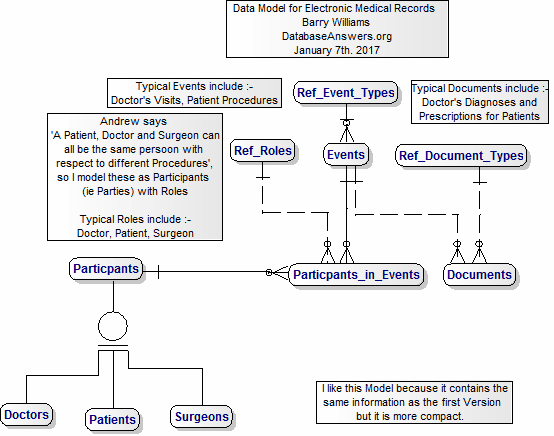

Data Model - Version 2

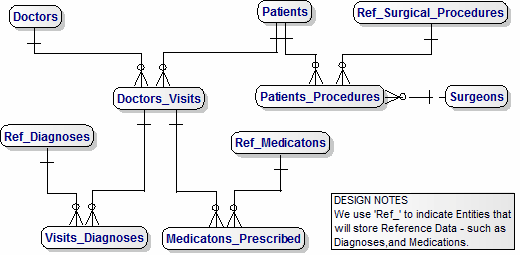

Data Model - Version 1 - April, 2013
Barry Williams
Principal Consultant
Database Answers Ltd.
London, England
April 3rd. 2013
