An Access Database is available.
Here are the Specifications and the
Data Model for our Proof-of-Concept.
We would be glad to have
your comments.
If you are new to Data Models, this page of my new Tutorial will help you understand the Data Model.
We might also design a Dimensional Model.
For the Proof-of-Concept, Apex will be used to create and modify
data in the Documents, Locations, �Products in Shipments�
and Shipments tables.
Spreadsheets will create data in the Customers and Products tables.

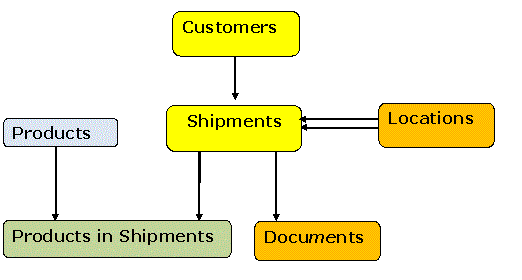

1) Conceptual Data Model
|

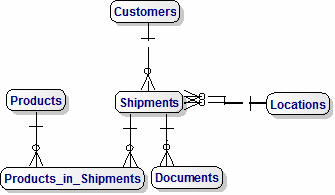

2) Logical Data Model - Entity names only
|
The Physical Database Model
This shows the final step in the process of generating a Database from a Conceptual Model.

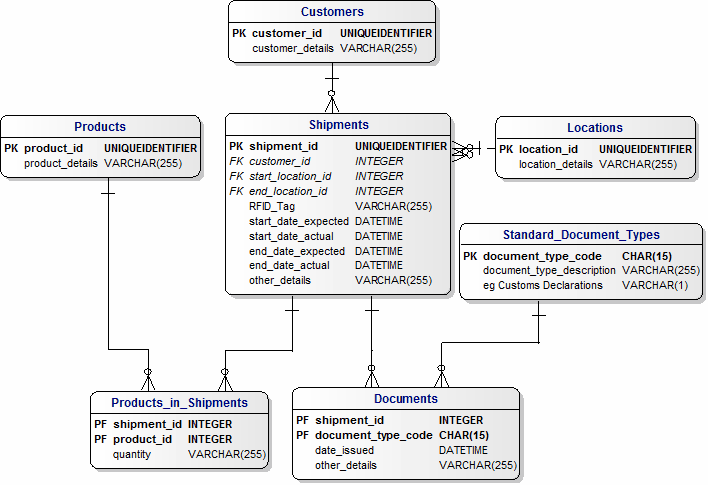

3) Physical Data Model
|
Barry Williams
Principal Consultant
Database Answers Ltd.
London, England
July 28th. 2016
|
