Data Model for the missing MH370 Plane
This Data Model combines our previous work on Financial Instruments, FPML Products, FX Deals,
Financial Statement Generator and the Dimensional Model for FX Deals

We would be glad to have your comments.

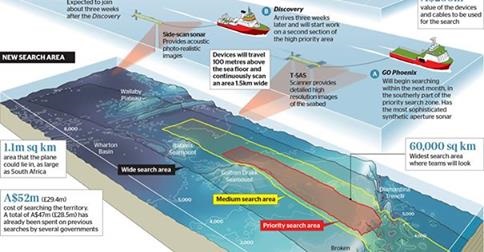

Map of the Search Area
This diagram appeared in the UK Times Newspaper on Sept 4th. 2014.

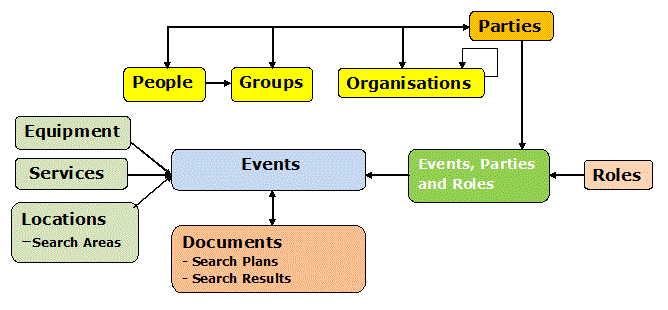

Simple Conceptual Model

   Simple Conceptual Data Model for the missing MH370 Plane
ERD Logical Data Model
   This shows our Canonical Data Model

Canonical Data Model 		Realistic Complex Conceptual Model
   This is built on our Canonical Data Model (shown on the left).

Conceptual Data Model for the missing MH370 Plane

Barry Williams
Principal Consultant
Database Answers Ltd.
London, England
September 8th. 2014
