Generic Sales Receipt Data Model

An Access Database is available on demand. This Model is based on our Canonical Data Model.

If you are new to Data Models, this page of my new Tutorial will help you understand the Data Model.

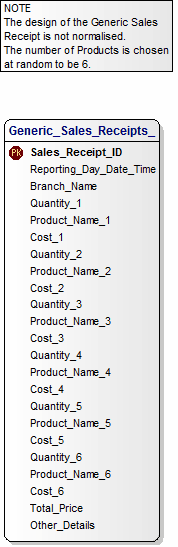

The Denormalised Generic Data Model looks like this ...
Data Model for Generic Sales Receipt

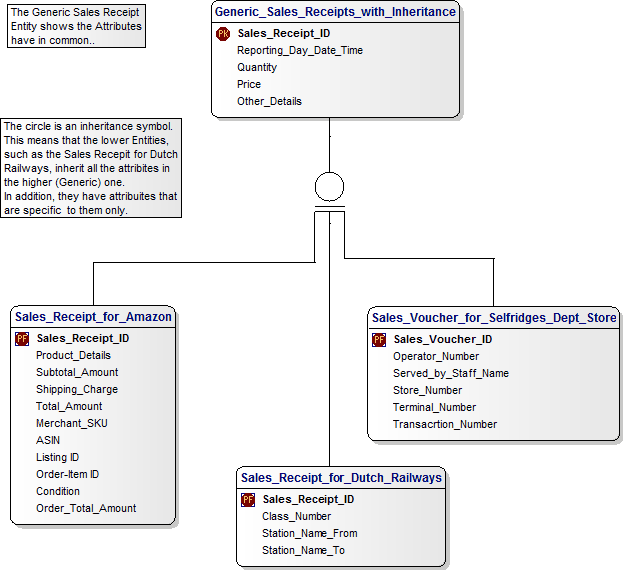

This version shows Inheritance ...
Data Model for Generic Sales Receipt with Inheritance

And the corresponding normalized Data Model looks like this ...
Normalised ERD Data Model from Generic Sales Receipts

Barry Williams
Principal Consultant
Database Answers Ltd.
London, England
January 16th. 2013
